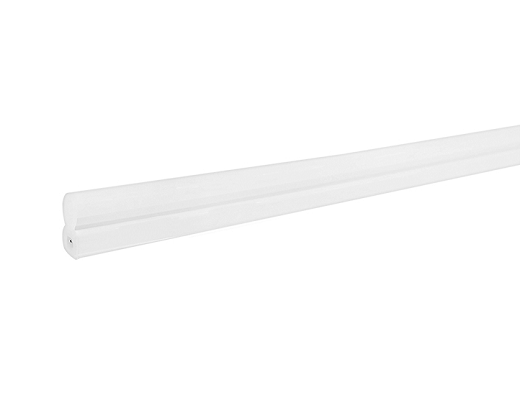

LED T5 Seamless Batten NL191A-NL194A - 5W/9W/14W/18W
Features
- Energy saving with low power consumption
- Low thermal output with no IR and harmful UV
- No mercury and hazardous substances
- Seamless design
- Optional Switch
- Accessories: Mounting clips, Caps, Cable, Connecting cable
- Good color rendition, Ra ≥80

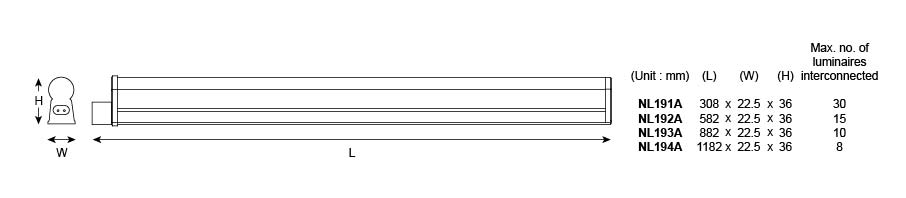

Diagrams
Standards
Applications
Home
Office
Shopping mall
Hotel
Supermarket
School
Gallery
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | NDLS |
| Mains or Non-mains [MLS/NMLS] | MLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 5W / 9W / 14W / 18W |
| On-mode Power [W] | 5W / 9W / 14W / 18W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 220-240V, 50/60Hz |
| Power Factor | 0.77 / 0.88 / 0.92 / 0.93 |
| Input Current [mA] @230V | 28 / 44 / 66 / 84 |
| Model | |
| NL191A-5W/8xx | 5W |
| NL192A-9W/8xx | 9W |
| NL193A-14W/8xx | 14W |
| NL194A-18W/8xx | 18W |
| Luminous Flux (Useful Luminous Flux) [lm] | |
| 5W | 430lm @3000K |
| 460lm @4000K | |
| 500lm @6500K | |
| 9W | 800lm @3000K |
| 850lm @4000K | |
| 900lm @6500K | |
| 14W | 1400lm @3000K |
| 1450lm @4000K | |
| 1500lm @6500K | |
| 18W | 1800lm @3000K |
| 1850lm @4000K | |
| 1900lm @6500K | |
| SCDM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.4@3000K / 0.38, 0.38@4000K / 0.31, 0.34@6500K |
| Efficacy [lm/W] | 86-107 |
| Color Rendering Index [Ra] | 80 |
| R9 colour rendering index value | 2 |
| Beam Angle [°] | 130 |
| Rated Life, Ta@25°C [hrs] | 15,000 |
| Lamp Survival Factor | 0.9 |
| Lumen Maintenance | 0.93 |
| Number of Switching Cycles Before Failure | >7,500 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | 0.9 |
| Flicker Metric [Pst LM] | 1 |
| Stroboscopic Effect Metric [SVM] | 0.4 |
| Mechanical | |
| Length L [mm] | 308 / 582 / 882 / 1182 |
| Width W [mm] | 22.5 |
| Height H [mm] | 36 |
| Material | Body: PC |
| Diffuser: Opal | |
| End cap: Plastic | |
| Standard Compliance | |
| CE-LVD | EN60598-1, EN60598-2-1, EN62471 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| CE-EMF | EN62493 |
| Environment | RoHS |
| Mercury Content [mg] | 0.0 |
| Energy Class | F |
| Electrical Class | II |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | No |
| Operation Temperature | -20°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Energy Consumption in on-mode [kWh/1000h] | 5kWh / 9kWh / 14kWh / 18kWh |
