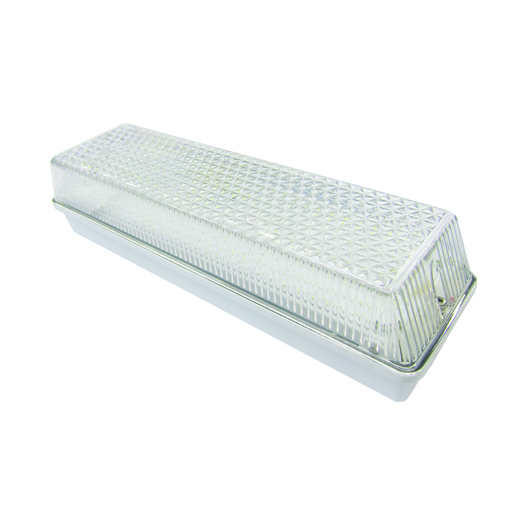

LED Bulkhead NB101E - 7W/14W
Features
- LED bulkhead light fitting
- Symmetric direct light distribution
- Auto cut off mains with gear tray opens as an option
- Operate reliably from -20°C to +40°C ambient temperature
- Guarantees functionality in dusty and humid environment
- Good color rendition, Ra ≥80

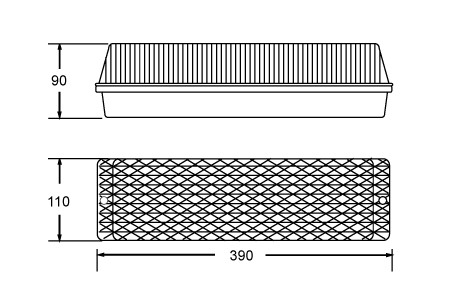

Diagrams
Standards
Applications
Parking
Garden
Warehouse
Station
| Electrical | |
| Rated Wattage [W] | 7W / 14W |
| Rated Voltage [V/Hz] | 100-240V, 50/60Hz |
| Power Factor @230V | 0.9 |
| Input Current [mA] @230V | 34 / 68 |
| LED | SMD |
| Model | |
| NB101E-7W/8XX | 7W |
| NB101E-7W/8XX-S | 7W (2 Step Dimming Sensing) |
| NB101E-7W/8XX-EM | 7W (3 Hours Emergency) |
| NB101E-7W/8XX-S-EM | 7W (Sensing & Emergency) |
| NB101E-14W/8XX | 14W |
| NB101E-14W/8XX-S | 14W (2 Step Dimming Sensing) |
| NB101E-14W/8XX-EM | 14W (3 Hours Emergency) |
| NB101E-14W/8XX-S-EM | 14W (Sensing & Emergency) |
| Luminous Flux [lm] | |
| 7W / 7W-S | 780lm @3000K |
| 810lm @4000K | |
| 840lm @6500K | |
| 7W-EM / 7W-S-EM | 710lm @3000K |
| 740lm @4000K | |
| 770lm @6500K | |
| 14W / 14W-S | 1560lm @3000K |
| 1620lm @4000K | |
| 1680lm @6500K | |
| 14W-EM / 14W-S-EM | 1420lm @3000K |
| 1480lm @4000K | |
| 1540lm @6500K | |
| Performance | |
| SDCM | <6 |
| Efficacy [lm/W] | 101-120 |
| Color Rendering Index [Ra] | ≥80 |
| Beam Angle [°] | 120 |
| Rated Life, Ta@25°C [hrs] | 50,000 |
| Lamp Survival Factor at 6000hrs | >0.9 |
| Lumen Maintenance at 6000hrs | >0.8 |
| Number of Switching Cycles Before Failure | >15,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Emergency Output | 30% |
| Emergency Duration [hrs] | 3 |
| Charge Time [hrs] | 12 |
| Mechanical | |
| Length L [mm] | 390 |
| Width W [mm] | 110 |
| Height H [mm] | 90 |
| Material | Body : Die cast aluminum with matt white finish |
| Diffuser: Clear prismatic polycarbonate | |
| Sensor type | Microwave 5.8 GHz |
| Sensor distance [m] | 1-8 |
| Standby time [s] | 10-300 |
| Standby power [W] | 0.9 |
| Sensor detection angle [°] | 120 |
| Standard Compliance | |
| CE-LVD | EN60598-1, EN60598-2-2, EN60598-2-22 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| CE-EMF | EN62493 |
| Mercury Content [mg] | 0.0 |
| Electrical Class | I |
| Other | |
| Dimmable [Y/N] | Y |
| Operation Temperature | -20°C ~ 40°C |
| Storage Temperature | -30°C ~ 60°C |
