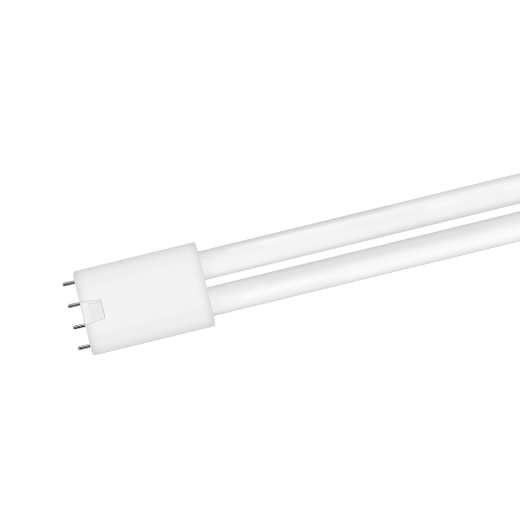

LED PLL AC - 8W/12W/18W/20W/24W
Features
- Energy saving with low power consumption

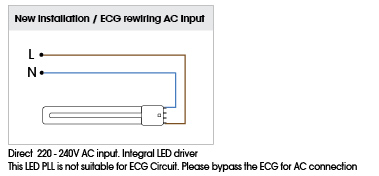

- LED PLL is not suitable for ECG Circuit. The ECG should be bypassed for AC connection
- For direct connection with AC
- Instant full brightness
- Smooth operation even at low temperatures
- No mercury and hazardous substances
- Full glass body
- Voltage : 220-240Vac, 50/60Hz, Power Factor: 0.5
- Good color rendition, Ra ≥80
Diagrams
Standards
Applications
Home
Office
Shopping mall
Hotel
Restaurant
Parking
School
Warehouse
Hospital
Gallery
Museum
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | NDLS |
| Mains or Non-mains [MLS/NMLS] | MLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 8W / 12W / 16W / 20W / 24W |
| On-mode Power [W] | 8W / 12W / 16W / 20W / 24W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 220-240Vac, 50/60Hz |
| Power Factor @230V | 0.5 |
| Input Current [mA] @230V | 70 / 104 / 139 / 174 / 209 |
| Model | |
| LED PLL/18-8W/AC/8XX/G | 8W |
| LED PLL/24-12W/AC/8XX/G | 12W |
| LED PLL/36-18W/AC/8XX/G | 18W |
| LED PLL/40-20W/AC/8XX/G | 20W |
| LED PLL/55-24W/AC/8XX/G | 24W |
| Luminous Flux (Useful Luminous Flux) [lm] | |
| 8W | 950lm @3000K |
| 975lm @4000K | |
| 1000lm @6500K | |
| 12W | 1450lm @3000K |
| 1475lm @4000K | |
| 1500lm @6500K | |
| 18W | 2200lm @3000K |
| 2250lm @4000K | |
| 2300lm @6500K | |
| 20W | 2450lm @3000K |
| 2500lm @4000K | |
| 2550lm @6500K | |
| 24W | 3100lm @3000K |
| 3200lm @4000K | |
| 3300lm @6500K | |
| Performance | |
| SDCM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.403@3000K / 0.38, 0.38@4000K / 0.312, 0.335@6500K |
| Efficacy [lm/W] | 118-137 |
| Color Rendering Index [Ra] | ≥80 |
| R9 colour rendering index value | 2 |
| Beam Angle [°] | 270 |
| Rated Life, Ta@25°C [hrs] | 30,000 |
| Survival Factor | 0.9 |
| Lumen Maintenance Factor | 0.96 |
| Number of Switching Cycles Before Failure | >15,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | 0.5 / 0.7 / 0.7 / 0.7 / 0.9 |
| Flicker Metric [Pst LM] | 1 |
| Stroboscopic Effect Metric [SVM] | 0.4 |

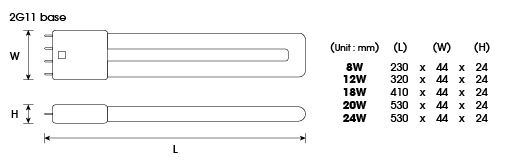

| Mechanical | |
| Length L [mm] | 230 / 320 / 410 / 530 / 530 |
| Width W [mm] | 44 |
| Height H [mm] | 24 |
| Base | 2G11 |
| Material | Glass |
| Standard Compliance | |
| CE-LVD | EN62560 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| CE-EMF | EN62493 |
| Environment | RoHS |
| Mercury Content [mg] | 0.0 |
| Energy Class | 3000K / 4000K / 6500K |
| 8W | E / E / E |
| 12W | E / E / E |
| 18W | E / E / E |
| 20W | E / E / E |
| 24W | E / E / D |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | No |
| Operation Temperature | -20°C ~ 50°C |
| Storage Temperature | -10°C ~ 30°C |
| Claim of Equivalent Power, 8W [W] | 18W |
| Claim of Equivalent Power, 12W [W] | 24W |
| Claim of Equivalent Power, 18W [W] | 36W |
| Claim of Equivalent Power, 20W [W] | 40W |
| Claim of Equivalent Power, 24W [W] | 55W |
| Energy Consumption in on-mode [kWh/1000h] | 8kWh / 12kWh / 18kWh / 20kWh / 24kWh |
