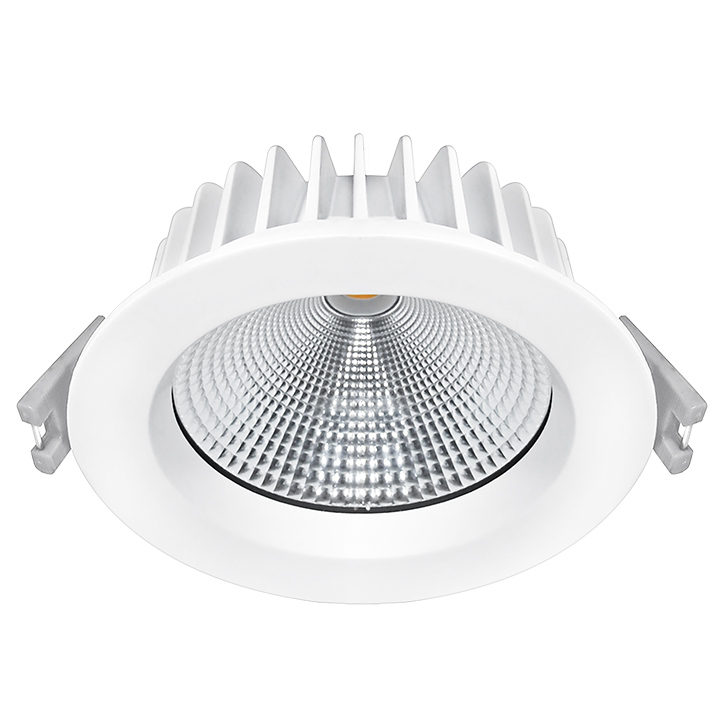

LED Downlight ND341E-345E - 9W/15W/20W/28W/32W
Features
- 9W / 15W / 20W / 28W / 32W LED Downlight
- Recessed round, uniform distribution
- Ideal replacement up to 70W HID downlight
- Cut out dimensions Ø90mm / Ø125mm / Ø145mm / Ø165mm / Ø200mm
- Dimmable as option
- Color Rendering Index: ≥80

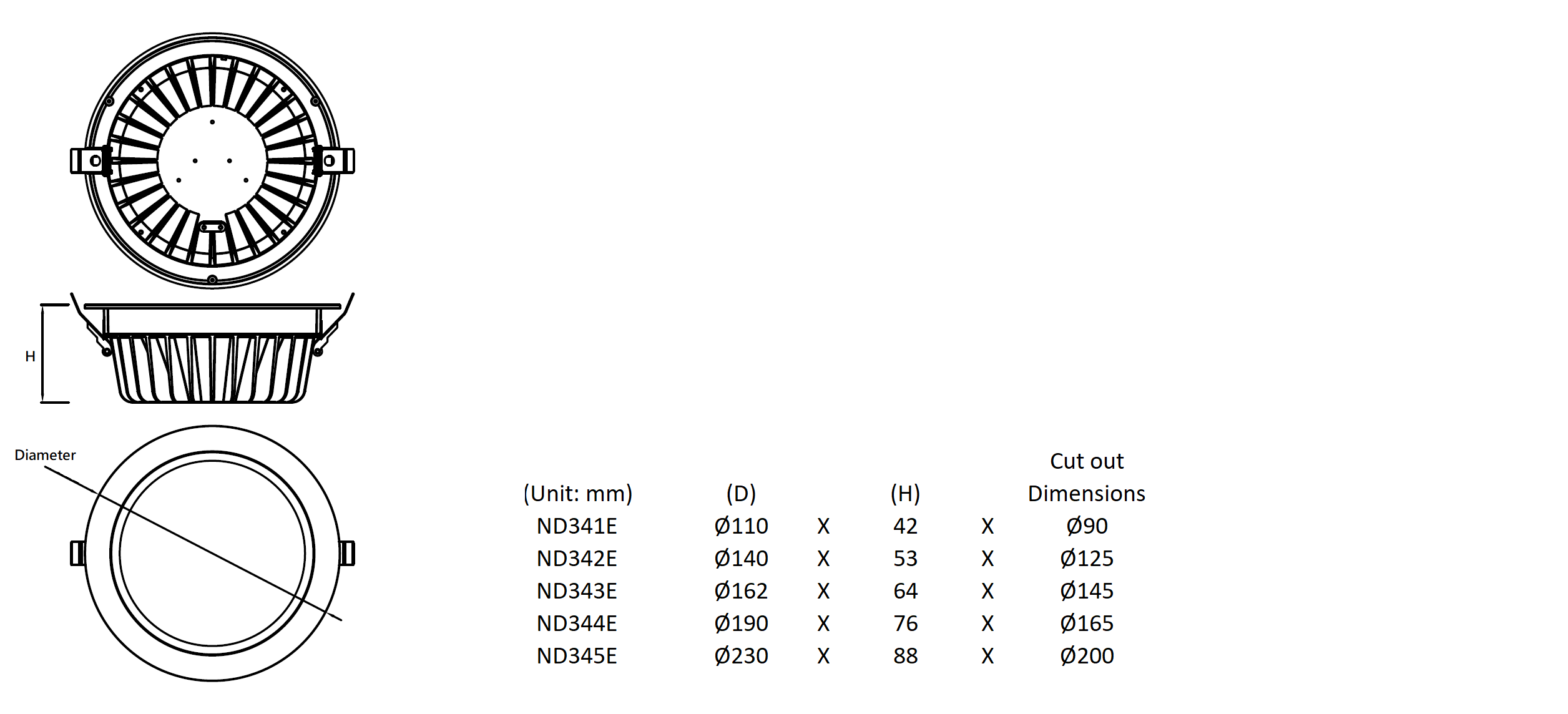

Diagrams
Standards
Applications
Home
Shopping mall
Hotel
Supermarket
Restaurant
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | DLS |
| Mains or Non-mains [MLS/NMLS] | NMLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 9W / 15W / 20W / 28W / 32W |
| On-mode Power [W] | 9W / 15W / 20W / 28W / 32W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 220-240V, 50/60Hz |
| Power Factor | 0.95 |
| Input Current [mA] @230V | 41 / 69 / 102 / 128 / 146 |
| Model | |
| ND341E-9W/8XX | 9W (COB 200mA, 36±2Vdc) |
| ND342E-15W/8XX | 15W (COB 350mA, 36±2Vdc) |
| ND343E-20W/8XX | 20W (COB 500mA, 36±2Vdc) |
| ND344E-28W/8XX | 28W (COB 700mA, 36±2Vdc) |
| ND345E-32W/8XX | 32W (COB 800mA, 36±2Vdc) |
| Luminous Flux (Useful Luminous Flux) [lm] | |
| 9W | 810lm (785lm) @3000K |
| 860lm (835lm) @4000K | |
| 910lm (885lm) @5000K | |
| 15W | 1350lm (1310lm) @3000K |
| 1400lm (1360lm) @4000K | |
| 1450lm (1410lm) @5000K | |
| 20W | 1800lm (1745lm) @3000K |
| 1850lm (1795lm) @4000K | |
| 1900lm (1845lm) @5000K | |
| 28W | 2520lm (2445lm) @3000K |
| 2570lm (2495lm) @4000K | |
| 2620lm (2540lm) @5000K | |
| 32W | 2880lm (2795lm) @3000K |
| 2930lm (2840lm) @4000K | |
| 2980lm (2890lm) @5000K | |
| Performance | |
| SCDM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.4@3000K / 0.38, 0.38@4000K / 0.35, 0.36@5000K |
| Efficacy [lm/W] | 87-98 |
| Color Rendering Index [Ra] | 80 |
| R9 colour rendering index value | 2 |
| Beam Angle [°] | 40 / 60 |
| Rated Life, Ta@25°C [hrs] | 50,000 |
| Lamp Survival Factor | >0.9 |
| Lumen Maintenance | >0.96 |
| Number of Switching Cycles Before Failure | 25,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | N/A |
| Flicker Metric [Pst LM] | N/A |
| Stroboscopic Effect Metric [SVM] | N/A |
| Mechanical | |
| Diameter D [mm] | Ø110 / Ø140 / Ø162 / Ø190/ Ø230 |
| Cut out dimensions [mm] | Ø90 / Ø125 / Ø145 / Ø165 / Ø200 |
| Height H [mm] | 42 / 53 / 64 / 76 / 88 |
| Material | Body: Die-cast aluminium |
| Trim: Die-cast aluminium | |
| Reflector: High purity, anodized aluminium | |
| Diffuser: Frosted PS, UV protected | |
| Standard Compliance | |
| CE-LVD | EN60598-1, EN60598-2-2 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Environment | RoHS |
| Energy Class | F |
| Mercury Content [mg] | 0.0 |
| Electrical Class | II |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | Optional |
| Operation Temperature | -20°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Energy Consumption in on-mode [kWh/1000h] | 9kWh / 15kWh / 20kWh / 28kWh / 32kWh |
