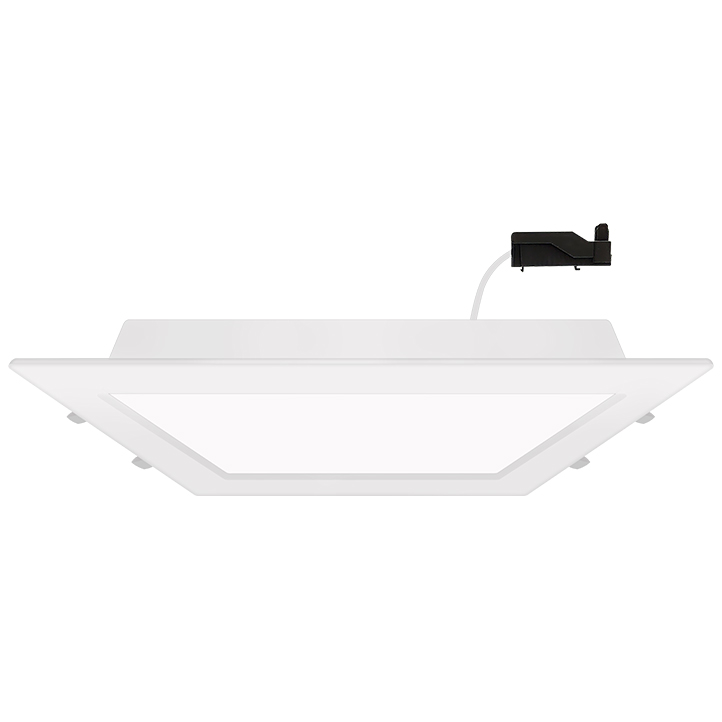

LED Downlight ND411E-416E - 4W/6W/9W/12W/18W/24W
Features
- 4W / 6W / 9W / 12W / 18W / 24W LED Downlight
- Recessed square, uniform distribution
- Comfort glare-free diffuser
- Ideal replacement up to 2x26W compact fluo. downlight
- Low profile and slim (only 26-30mm deep), suitable for shallow ceiling void
- Integral gear unit allows quick and easy installation
- Cut out dimensions 80x80mm / 100x100mm / 115x115mm / 145x145mm / 195x195mm / 265x265mm
- Good color rendition, Ra ≥80

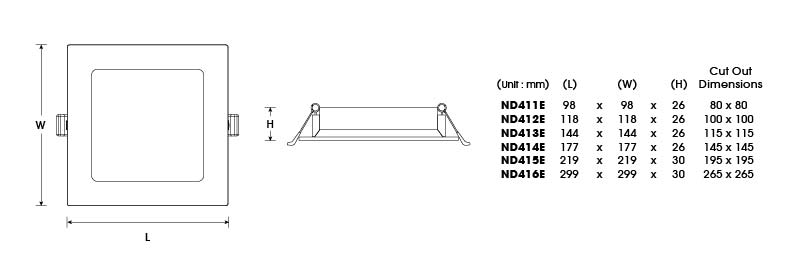

Diagrams
Standards
Applications
Home
Office
Shopping mall
Hotel
Supermarket
Restaurant
Hospital
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | DLS |
| Mains or Non-mains [MLS/NMLS] | MLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 4W / 6W / 9W / 12W / 18W / 24W |
| On-mode Power [W] | 4W / 6W / 9W / 12W / 18W / 24W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 220-240V, 50/60Hz |
| Power Factor | 0.9 |
| Input Current [mA] @230V | 19 / 29 / 43 / 58 / 87 / 116 |
| Model | |
| ND411E-4W/8XX | 4W |
| ND412E-6W/8XX | 6W |
| ND413E-9W/8XX | 9W |
| ND414E-12W/8XX | 12W |
| ND415E-18W/8XX | 18W |
| ND416E-24W/8XX | 24W |
| Luminous Flux (Useful Luminous Flux) [lm] | |
| 4W | 320lm (305lm) @3000K |
| 325lm (310lm) @4000K | |
| 330lm (315lm) @6500K | |
| 6W | 480lm (455lm) @3000K |
| 490lm (465lm) @4000K | |
| 500lm (475lm) @6500K | |
| 9W | 720lm (685lm) @3000K |
| 730lm (695lm) @4000K | |
| 740lm (705lm) @6500K | |
| 12W | 960lm (915lm) @3000K |
| 1030lm (980lm) @4000K | |
| 1100lm (1045lm) @6500K | |
| 18W | 1440lm (1370lm) @3000K |
| 1490lm (1420lm) @4000K | |
| 1540lm (1465lm) @6500K | |
| 24W | 1920lm (1825lm) @3000K |
| 1960lm (1865lm) @4000K | |
| 2000lm (1900lm) @6500K | |
| Performance | |
| SCDM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.403@3000K / 0.38, 0.38@4000K / 0.312, 0.335@6500K |
| Efficacy [lm/W] | 76-87 |
| Color Rendering Index [Ra] | 80 |
| R9 colour rendering index value | 2 |
| Beam Angle [°] | 120 |
| Rated Life, Ta@25°C [hrs] | 25,000 |
| Lamp Survival Factor | 0.9 |
| Lumen Maintenance | 0.96 |
| Number of Switching Cycles Before Failure | 12,500 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | 0.5 / 0.5 / 0.5 / 0.7 / 0.7 / 0.7 |
| Flicker Metric [Pst LM] | 1 |
| Stroboscopic Effect Metric [SVM] | 0.4 |
| Mechanical | |
| Length L [mm] | 98 / 118 / 144 / 177 / 219 / 299 |
| Width W [mm] | 98 / 118 / 144 / 177 / 219 / 299 |
| Height H [mm] | 26 / 26 / 26 / 26 / 30 / 30 |
| Cut out dimensions [mm] | 80x80 / 100x100 / 115x115 / 145x145 / 195x195 / 265x265 |
| Material | Body: Thermoplastic polypropylene (PP) |
| Trim: Thermoplastic polypropylene (PP) | |
| Diffuser: Frosted PS, UV protected | |
| Standard Compliance | |
| CE-LVD | EN60598-1, EN60598-2-2 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Environment | RoHS |
| Mercury Content [mg] | 0.0 |
| Energy Class | F |
| Electrical Class | II |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | No |
| Operation Temperature | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Energy Consumption in on-mode [kWh/1000h] | 4kWh / 6kWh / 9kWh / 12kWh / 18kWh / 24kWh |
