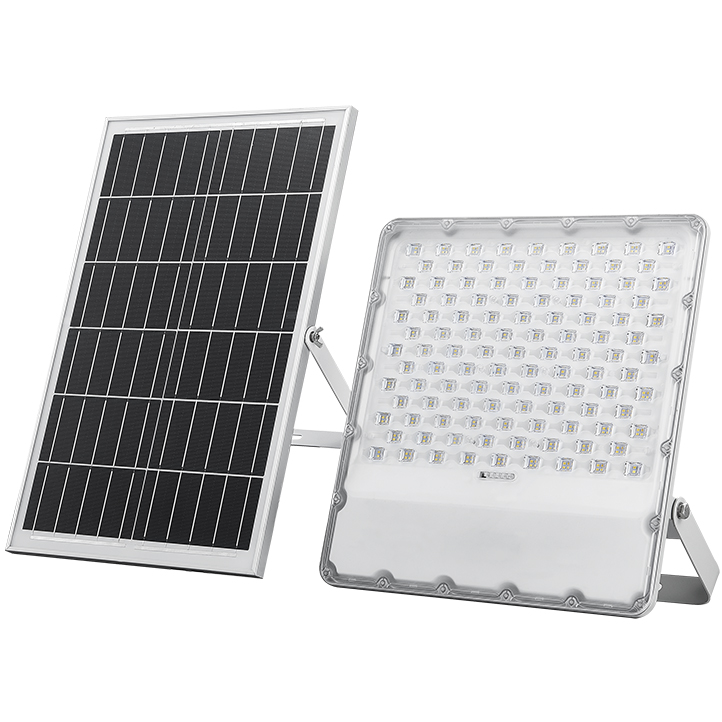

LED Solar Floodlight UF171S-175S
Features
- Solar-powered and Eco-friendly with ZERO electricity cost
- Tempered glass solar panel and die-cast aluminium housing withstanding severe weather conditions
- Remote control to adjust operation time and brightness level
- Embedded with Daylight Sensor
- Plug and play power cord, easy installation
- Built-in Lithium iron phosphate battery, discharge time from 5-6 hours
- Good color rendition, Ra ≥80
Diagrams
Standards
Applications
Parking
Garden
| Electrical | |
| Rated input | Powered by solar panel |
| LED | SMD |
| Model - Luminous Flux(lm) | |
| UF171S-8xx | 300lm @3000K-6500K |
| UF172S-8xx | 600lm @3000K-6500K |
| UF173S-8xx | 890lm @3000K-6500K |
| UF174S-8xx | 1440lm @3000K-6500K |
| UF175S-8xx | 1700lm @3000K-6500K |
| Battery Capacity | |
| UF171S-8xx | 5AH 3.2V |
| UF172S-8xx | 10AH 3.2V |
| UF173S-8xx | 15AH 3.2V |
| UF174S-8xx | 25AH 3.2V |
| UF175S-8xx | 30AH 3.2V |
| Performance | |
| SDCM | <6 |
| Color Rendering Index [Ra] | ≥80 |
| Beam Angle [°] | 90 |
| Rated Life, Ta@25°C [hrs] | 20,000 |
| Discharge time [hrs] | 5 - 6 |

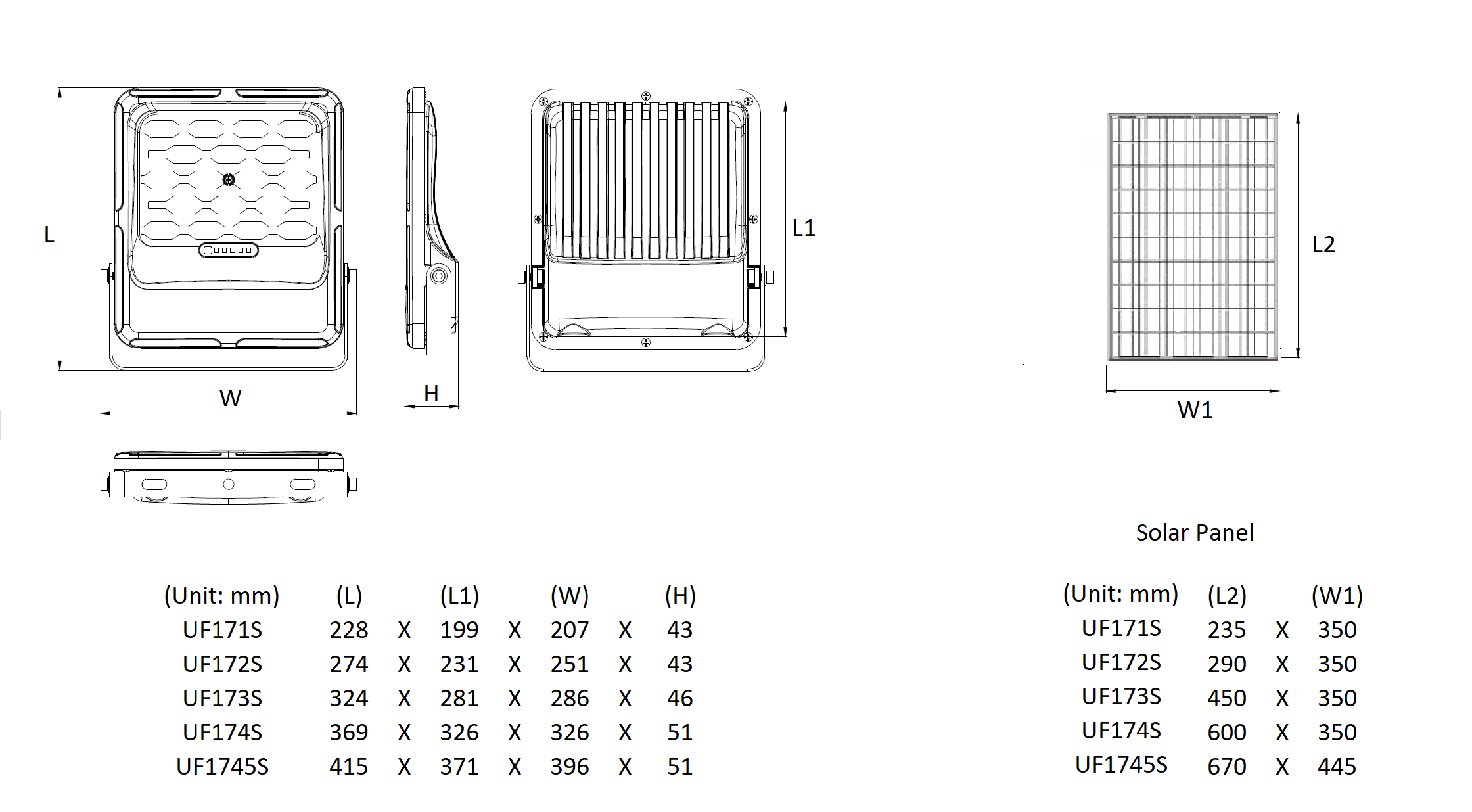

| Mechanical | |
| Length L [mm] | 228 / 274 / 324 / 369 / 415 |
| Width W [mm] | 207 / 251 / 286 / 326 / 396 |
| Height H [mm] | 43 / 43 / 46 / / 51 / 51 |
| Material | Aluminium |
| Standard Compliance | |
| Mercury Content [mg] | |
| Other | |
| Dimmable [Y/N] | Y |
| Operation Temperature [°C] | -20°C ~ 45°C |
| Storage Temperature [°C] | -20°C ~ 45°C |
