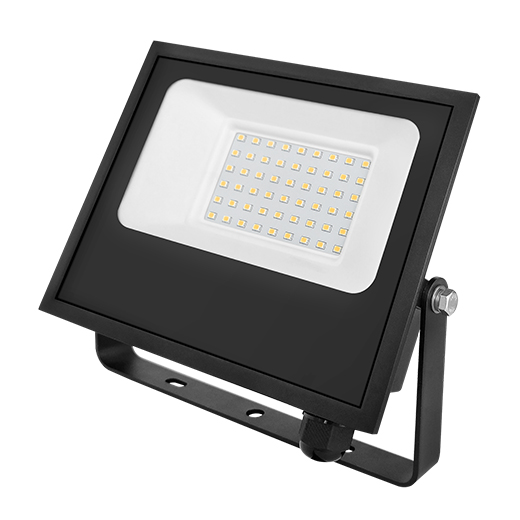

LED Floodlight UF241E-245E - 20W/30W/50W/100W/150W/200W
Features
- 20W / 30W / 50W / 100W / 150W / 200W LED Floodlight
- Polyester powder finish for excellent corrosion and UV resistance
- Designed for excellent thermal transfer to extend component life
- Uniform design with five construction sizes
- Good heat dissipation performance
- Good color rendition, Ra ≥80

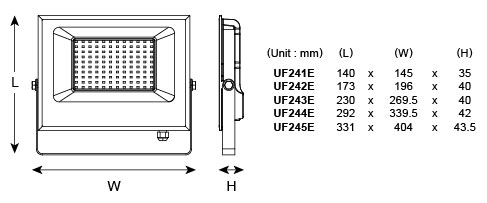

Diagrams
Standards
Applications
Parking
School
Garden
Warehouse
Factory
Arena
Airport
Station
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | DLS |
| Mains or Non-mains [MLS/NMLS] | MLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 20W / 30W / 50W / 100W / 150W / 200W |
| On-mode Power [W] | 20W / 30W / 50W / 100W / 150W / 200W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 220-240Vac, 50/60Hz |
| Power Factor | 0.9 |
| Input Current [mA] @230V | 97 / 145 / 242 / 483 / 725 / 966 |
| Model | |
| UF241E-20W/8XX | 20W |
| UF241E-30W/8XX | 30W |
| UF242E-50W/8XX | 50W |
| UF243E-100W/8XX | 100W |
| UF244E-150W/8XX | 150W |
| UF245E-200W/8XX | 200W |
| Luminous Flux (Useful Luminous Flux) [lm] | |
| 20W | 1600lm (1520lm) @3000K |
| 1650lm (1570lm) @4000K | |
| 1700lm (1615lm) @6500K | |
| 30W | 2600lm (2470lm) @3000K |
| 2650lm (2520lm) @4000K | |
| 2700lm (2565lm) @6500K | |
| 50W | 4350lm (4130lm) @3000K |
| 4425lm (4200lm) @4000K | |
| 4500lm (4275lm) @6500K | |
| 100W | 8700lm (8265lm) @3000K |
| 8850lm (8410lm) @4000K | |
| 9000lm (8550lm) @6500K | |
| 150W | 13050lm (12400lm) @3000K |
| 13275lm (12610lm) @4000K | |
| 13500lm (12825lm) @6500K | |
| 200W | 17400lm (16530lm) @3000K |
| 17700lm (16815lm) @4000K | |
| 18000lm (17100lm) @6500K | |
| Performance | |
| SCDM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.403@3000K / 0.38, 0.38@4000K / 0.312, 0.335@6500K |
| Efficacy [lm/W] | 76-86 |
| Color Rendering Index [Ra] | 80 |
| R9 colour rendering index value | 2 |
| Beam Angle [°] | 115 |
| Rated Life, Ta@25°C [hrs] | 50,000 |
| Lamp Survival Factor | 0.9 |
| Lumen Maintenance | 0.96 |
| Number of Switching Cycles Before Failure | 25,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | 0.7 / 0.9 / 0.9 / 0.9 / 0.9 / 0.9 |
| Flicker Metric [Pst LM] | 1 |
| Stroboscopic Effect Metric [SVM] | 0.4 |
| Mechanical | |
| Length L [mm] | 140 / 140 / 173 / 230 / 292 / 331 |
| Width W [mm] | 145 / 145 / 196 / 269.5 / 339.5 / 404 |
| Height H [mm] | 35 / 35 / 40 / 40 / 42 / 43.5 |
| Material | Body : Sturdy die-cast steel housing with anodised steel bracket and extruded silicone rubber gasket |
| Diffuser : Toughened glass | |
| Standard Compliance | |
| CE-LVD | EN60598-1, EN60598-2-2 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Environment | RoHS |
| Mercury Content [mg] | 0.0 |
| Energy Class | F |
| Electrical Class | I |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | No |
| Operation Temperature | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Energy Consumption in on-mode [kWh/1000h] | 20kWh / 30kWh / 50kWh / 100kWh / 150kWh / 200kWh |
