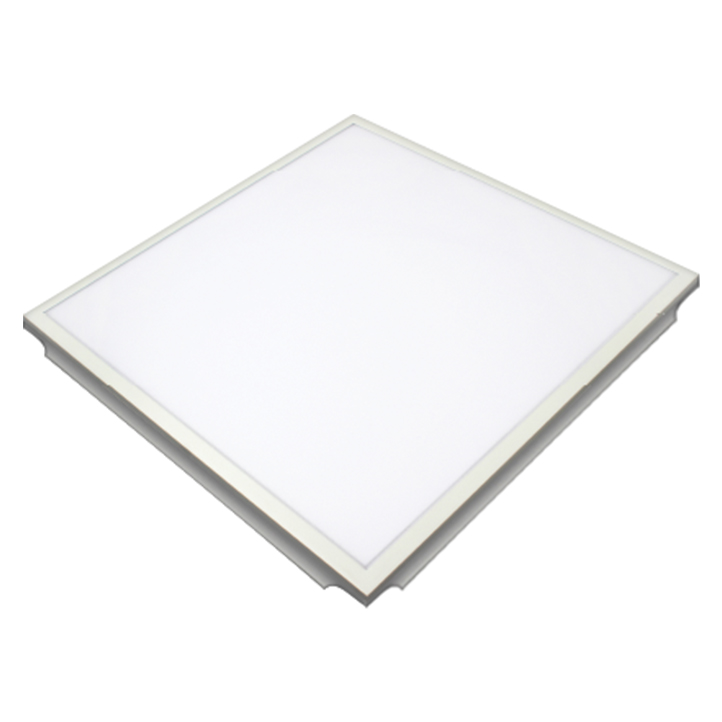

LED Panel NP141E-147E - 20W/40W/45W/50W/55W/60W/90W
Features
- 20W / 40W / 45W / 50W / 55W / 60W / 90W LED Panel
- Frosted PC diffuser provide uniform distribution
- Comfort glare-free light
- Good color rendition, Ra ≥80

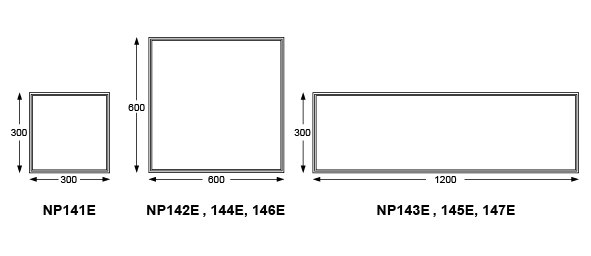

Diagrams
Standards
Applications
Office
Hotel
School
Hospital
Gallery
Museum
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | DLS |
| Mains or Non-mains [MLS/NMLS] | MLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 20W / 40W / 45W / 50W / 55W / 60W / 90W |
| On-mode Power [W] | 20W / 40W / 45W / 50W / 55W / 60W / 90W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 220-240V, 50/60Hz |
| Power Factor | 0.5 / 0.9 / 0.9 / 0.9 / 0.9 / 0.9 / 0.9 |
| Input Current [mA] @230V | 174 / 193 / 217 / 242 / 266 / 290 / 435 |
| Model | |
| NP141E-20W/8XX | 20W |
| NP142E-40W/8XX | 40W |
| NP143E-45W/8XX | 45W |
| NP144E-50W/8XX | 50W |
| NP145E-55W/8XX | 55W |
| NP146E-60W/8XX | 60W |
| NP147E-90W/8XX | 90W |
| Luminous Flux (Useful Luminous Flux) [lm] | |
| 20W | 1590lm (1510lm) @3000K |
| 1640lm (1560lm) @4000K | |
| 1685lm (1600lm) @6500K | |
| 40W | 3600lm (3420lm) @3000K |
| 3700lm (3515lm) @4000K | |
| 3800lm (3610lm) @6500K | |
| 45W | 3770lm (3580lm) @3000K |
| 3810lm (3620lm) @4000K | |
| 3855lm (3660lm) @6500K | |
| 50W | 4210lm (4000lm) @3000K |
| 4315lm (4100lm) @4000K | |
| 4420lm (4200lm) @6500K | |
| 55W | 4640lm (4410lm) @3000K |
| 4680lm (4445lm) @4000K | |
| 4800lm (4560lm) @6500K | |
| 60W | 5105lm (4850lm) @3000K |
| 5210lm (4950lm) @4000K | |
| 5315lm (5050lm) @6500K | |
| 90W | 7695lm (7310lm) @3000K |
| 7820lm (7430lm) @4000K | |
| 7950lm (7550lm) @6500K | |
| Performance | |
| SCDM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.403@3000K / 0.38, 0.38@4000K / 0.312, 0.335@6500K |
| Efficacy [lm/W] | 85-95 |
| Color Rendering Index [Ra] | ≥80 |
| R9 colour rendering index value | 2 |
| Beam Angle [°] | 115 |
| Rated Life, Ta@25°C [hrs] | 50,000 |
| Lamp Survival Factor | 0.9 |
| Lumen Maintenance | 0.96 |
| Number of Switching Cycles Before Failure | 25,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | 0.7 / 0.9 / 0.9 / 0.9 / 0.9 / 0.9 / 0.9 |
| Flicker Metric [Pst LM] | 1 |
| Stroboscopic Effect Metric [SVM] | 0.4 |
| Mechanical | |
| Length L [mm] | 300 / 600 / 600 / 600 / 300 / 300 / 300 |
| Width W [mm] | 300 / 600 / 600 / 600 / 1200 / 1200 / 1200 |
| Height H [mm] | 33 / 35 / 35 / 35 / 35 / 35 / 35 |
| Material | Body: Sheet steel housing with white finish |
| Diffuser: Frosted PC | |
| Standard Compliance | |
| CE-LVD | EN62560 |
| CE-EMF | EN62493 |
| Environment | RoHS |
| Mercury Content [mg] | 0.0 |
| Energy Class | F |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | No |
| Operation Temperature | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Energy Consumption in on-mode [kWh/1000h] | 20kWh / 40kWh / 45kWh / 50kWh / 55kWh / 60kWh / 90kWh |
