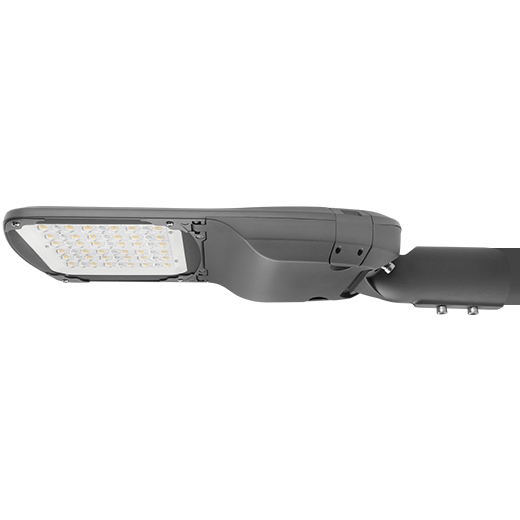

LED Roadlight UR121E-124E - 40W/50W/60W/80W/100W/120W/150W/200W
Features
- 40W / 50W / 60W / 80W / 100W / 120W / 150W / 200W LED Roadlight
- Wide beam angles for large open area coverage
- Asymmetric optic design with uniform distribution
- Excellent heat dissipation and long life span for low maintenance cost
- Integral driver
- Optional receptacle and photocell
Diagrams
Standards
Applications
Road Light
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | DLS |
| Mains or Non-mains [MLS/NMLS] | MLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 40W / 50W / 60W / 80W / 100W / 120W / 150W / 200W |
| On-mode Power [W] | 40W / 50W / 60W / 80W / 100W / 120W / 150W / 200W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 100-277V, 50/60Hz |
| Power Factor | 0.9 |
| Input Current [mA] @230V | 193 / 242 / 290 / 386 / 483 / 580 / 725 / 966 |
| Model | |
| UR121E-40W/7XX | 40W |
| UR121E-50W/7XX | 50W |
| UR121E-60W/7XX | 60W |
| UR122E-80W/7XX | 80W |
| UR122E-100W/7XX | 100W |
| UR123E-120W/7XX | 120W |
| UR123E-150W/7XX | 150W |
| UR124E-200W/7XX | 200W |
| Luminous Flux (Useful Luminous Flux) [lm] | |
| 40W | 5600lm (5320lm) @3000K |
| 5800lm (5510lm) @4000K | |
| 6000lm (5700lm) @6000K | |
| 50W | 7000lm (6650lm) @3000K |
| 7250lm (6890lm) @4000K | |
| 7500lm (7125lm) @6000K | |
| 60W | 8400lm (7980lm) @3000K |
| 8700lm (8265lm) @4000K | |
| 9000lm (8550lm) @6000K | |
| 80W | 11200lm (10640lm) @3000K |
| 11600lm (11020lm) @4000K | |
| 12000lm (11400lm) @6000K | |
| 100W | 14000lm (13300lm) @3000K |
| 14500lm (13755lm) @4000K | |
| 15000lm (14250lm) @6000K | |
| 120W | 16800lm (15960lm) @3000K |
| 17400lm (16530lm) @4000K | |
| 18000lm (17100lm) @6000K | |
| 150W | 21000lm (19950lm) @3000K |
| 21750lm (20660lm) @4000K | |
| 22500lm (21375lm) @6000K | |
| 200W | 28000lm (26600lm) @3000K |
| 29000lm (27550lm) @4000K | |
| 30000lm (28500lm) @6000K | |
| Performance | |
| SCDM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.403@3000K / 0.38, 0.38@4000K / 0.321, 0.322@6000K |
| Efficacy [lm/W] | 133-143 |
| Color Rendering Index [Ra] | ≥70 |
| R9 colour rendering index value | 2 |
| Optics | Type II / III / IV / V |
| Rated Life, Ta@25°C [hrs] | 50,000 |
| Lamp Survival Factor | 0.9 |
| Lumen Maintenance | 0.96 |
| Number of Switching Cycles Before Failure | 25,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | 0.9 |
| Flicker Metric [Pst LM] | 1 |
| Stroboscopic Effect Metric [SVM] | 0.4 |

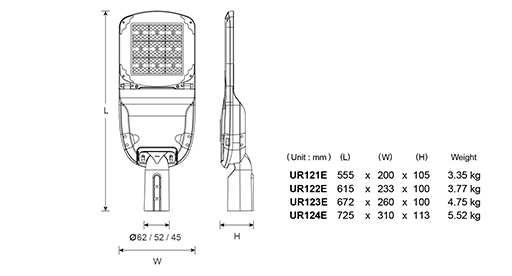

| Mechanical | |
| Length L [mm] | 555 / 615 / 672 / 725 |
| Width W [mm] | 200 / 233 / 260 / 310 |
| Height H [mm] | 105 / 100 / 100 / 113 |
| Weight [kg] | 3.35 / 3.77 / 4.75 / 5.52 |
| Material | Body: Die-cast aluminium |
| Lens: PC | |
| Diffuser: Tempered glass | |
| Standard Compliance | |
| CE-LVD | EN60598-1, EN60598-2-2 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Environment | RoHS |
| Mercury Content [mg] | 0.0 |
| Energy Class | 3000K / 4000K / 6500K |
| 40W | D / C / C |
| 50W | D / C / C |
| 60W | D / C / C |
| 80W | D / C / C |
| 100W | D / C / C |
| 120W | D / C / C |
| 150W | D / C / C |
| 200W | D / C / C |
| Electrical Class | I |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | Optional |
| Operation Temperature | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Energy Consumption in on-mode [kWh/1000h] | 40kWh / 50kWh / 60kWh / 80kWh / 100kWh / 120kWh / 150kWh / 200kWh |
