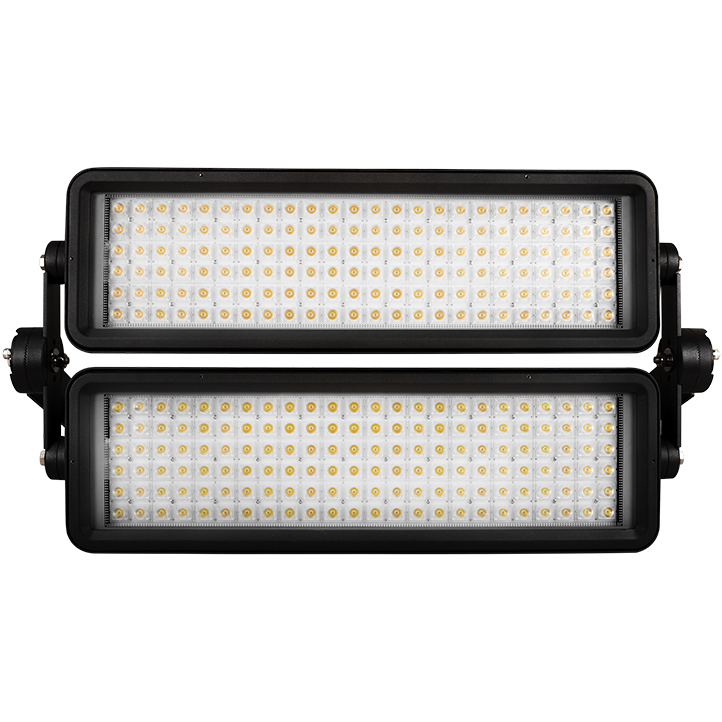

LED A MAXI SA20 - 500W/600W/700W/800W
Features
- Maximum 800W LED sportlight
- Perfectly replace traditional 1000W metal halide lamp
- Composed of 2 modules designed exclusively for sports, public areas, ports, and airport aprons lighting

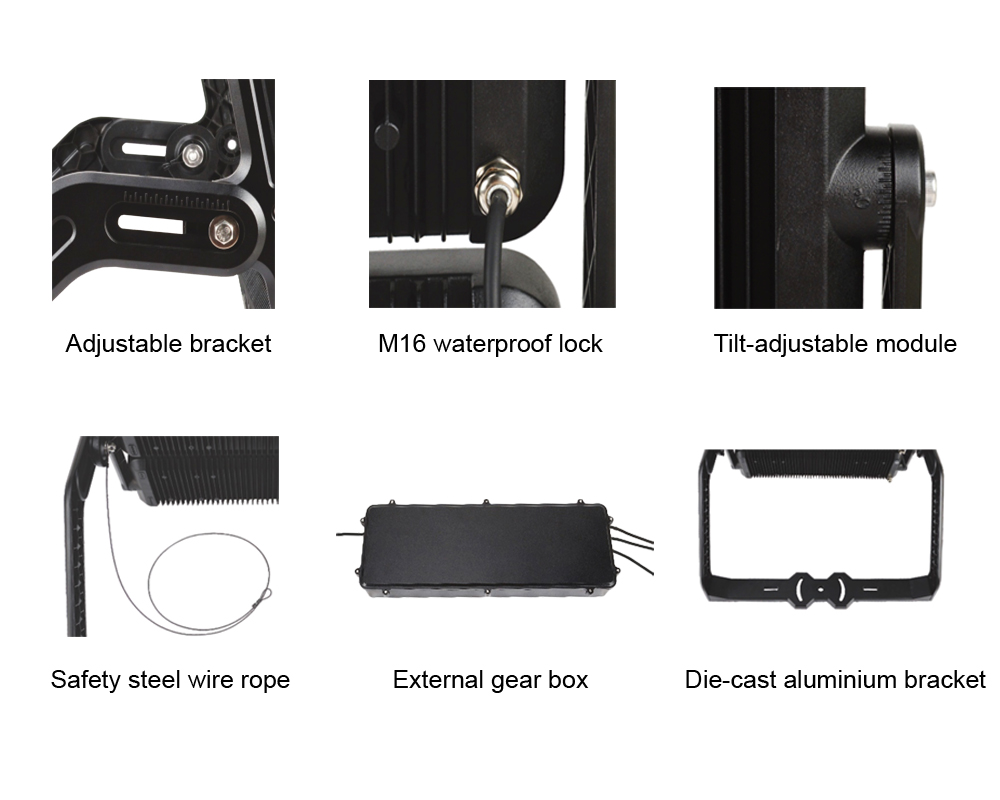

- Tilt-adjustable, die-cast aluminium housing, easy to replace and reduce maintenance cost
- External gear box with build-in high-power and non-flickering driver

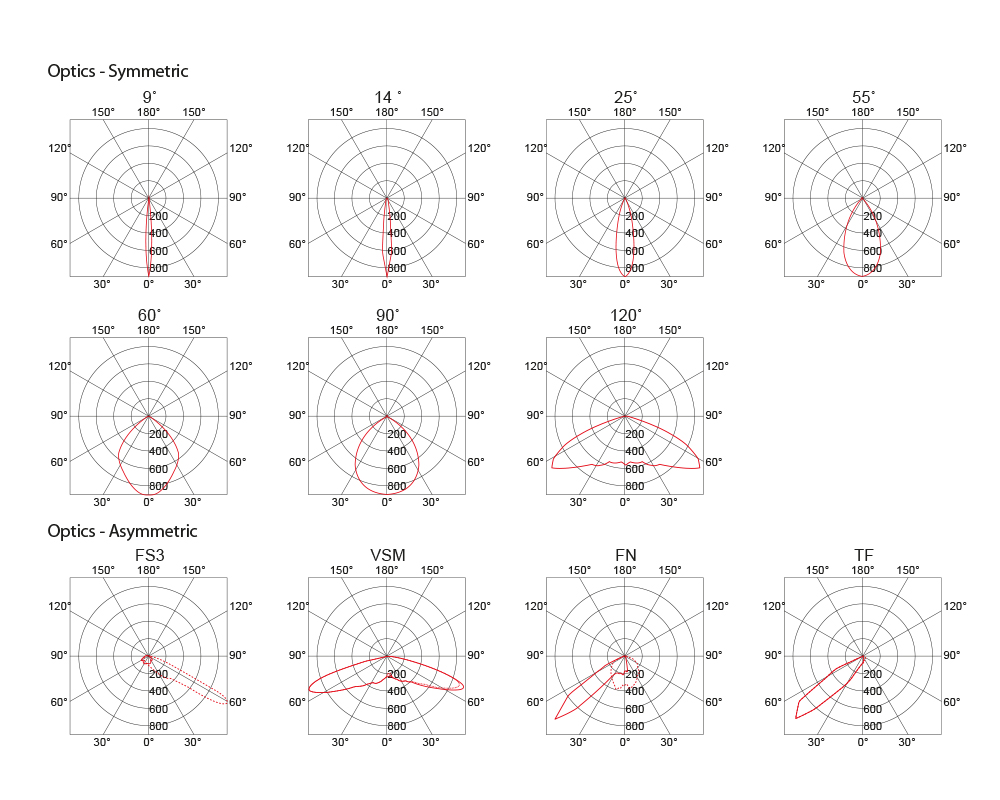

- 11 types advanced optical solutions are available
- Precise light beam supports HDTV recording, flicker-free recording and slow motion recording in compliance with professional sports broadcasting standards
- DALI / 0-10V / PWM / NBIOT dimming
- Wattage and lumen can be adjusted by lower driver output current
Diagrams
Standards
Applications
Arena
Airport
| Electrical | |
| Rated Wattage [W] | 500W / 600W / 700W / 800W |
| Rated Voltage [V/Hz] | 90-305 / 170-305Vac, 50/60Hz |
| Power Factor @230V | 0.9 |
| Input Current [A] @230V | 2.42 / 2.90 / 3.38 / 3.86 |
| LED | SMD |
| Model | |
| LED A MAXI SA20 | 500W / 600W / 700W / 800W |
| Luminous Flux (lm) | |
| 500W | 62500lm @4000K |
| 65000lm @5700K | |
| 600W | 75000lm @4000K |
| 78000lm @5700K | |
| 700W | 84000lm @4000K |
| 87500lm @5700K | |
| 800W | 92000lm @4000K |
| 96000lm @5700K | |
| Performance | |
| SDCM | <6 |
| Efficacy [lm/W] | 110-130 |
| Color Rendering Index [Ra] | ≥70 / 80 / 90 |
| Beam Angle [°] | Depend on lens |
| Rated Life, Ta@25°C [hrs] | 50,000 (L80/B10) |
| Lamp Survival Factor at 6000hrs | >0.9 |
| Lumen Maintenance at 6000hrs | >0.8 |
| Number of Switching Cycles Before Failure | >25,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |

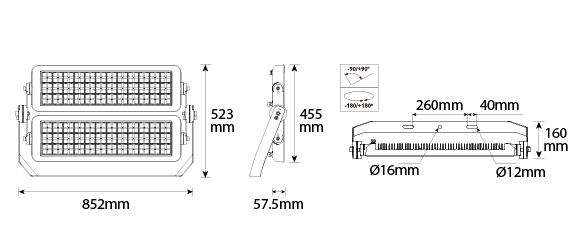

| Mechanical | |
| Length L [mm] | 852 |
| Width W [mm] | 160 |
| Height H [mm] | 523 |
| Material | Housing : ADC12 die-cast aluminium |
| Diffuser : High transparency tempered glass | |
| Gasket : Heat-resistant silicone | |
| Bracket : ADC12 die-cast aluminium | |
| Standard Compliance | |
| CE-LVD | EN60598-1, EN60598-2-5 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Mercury Content [mg] | 0.0 |
| Electrical Class | I |
| Other | |
| Dimmable [Y/N] | Y |
| Operation Temperature [°C] | -30°C ~ 45°C |
| Storage Temperature [°C] | -40°C ~ 60°C |
