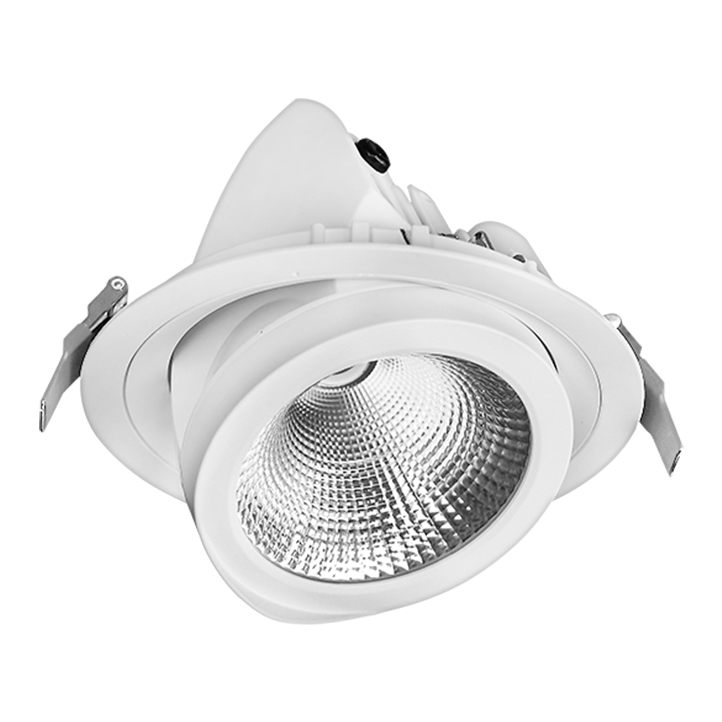

LED Spotlight NS161E-162E - 30W/40W
Features
- 30W / 40W LED Spotlight
- Adjustable tilting angle of 0°-60° vertically and 350° horizontally
- Ideal replacement for HID lighting fixtures up to 70W
- Dimmable as option
- Cut out dimensions Ø142mm / Ø175mm
- Good color rendition, Ra ≥80

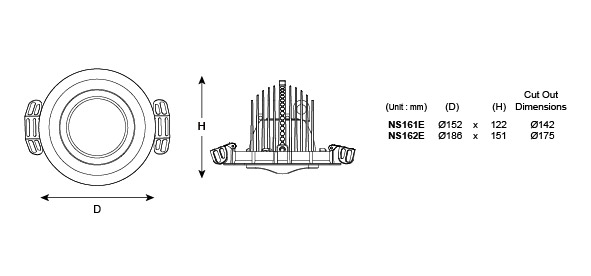

Diagrams
Standards
Applications
Shopping mall
Hotel
Supermarket
Restaurant
Gallery
Museum
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | DLS |
| Mains or Non-mains [MLS/NMLS] | MLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 30W / 40W |
| On-mode Power [W] | 30W / 40W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 220-240Vac, 50/60Hz |
| Power Factor | 0.9 |
| Input Current [mA] @230V | 145 / 193 |
| Model | |
| NS161E-30W/8XX | 30W |
| NS162E-40W/8XX | 40W |
| Luminous Flux (Useful Luminous Flux) [lm] | |
| 30W | 2600lm (2520lm) @3000K |
| 2700lm (2620lm) @4000K | |
| 2800lm (2715lm) @6500K | |
| 40W | 3500lm (3400lm) @3000K |
| 3600lm (3500lm) @4000K | |
| 3700lm (3600lm) @6500K | |
| Performance | |
| SCDM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.403@3000K / 0.38, 0.38@4000K / 0.312, 0.335@6500K |
| Efficacy [lm/W] | 84-91 |
| Color Rendering Index [Ra] | ≥80 |
| R9 colour rendering index value | 2 |
| Beam Angle [°] | 24 / 40 / 60 |
| Rated Life, Ta@25°C [hrs] | 50,000 |
| Lamp Survival Factor | 0.9 |
| Lumen Maintenance | 0.96 |
| Number of Switching Cycles Before Failure | 25,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | 0.9 |
| Flicker Metric [Pst LM] | 1 |
| Stroboscopic Effect Metric [SVM] | 0.4 |
| Mechanical | |
| Diameter [mm] | Ø152 / Ø186 |
| Cut out dimensions [mm] | Ø142 / Ø175 |
| Height H [mm] | 122 / 151 |
| Material | Body: Die-cast aluminium |
| Reflector: Anodised faceted aluminium | |
| Diffuser: Toughened glass | |
| Standard Compliance | |
| CE-LVD | EN60598-1, EN60598-2-1 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| CE-EMF | EN62493 |
| Mercury Content [mg] | 0.0 |
| Energy Class | F |
| Electrical Class | II |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | Yes |
| Operation Temperature | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Energy Consumption in on-mode [kWh/1000h] | 30kWh / 40kWh |
