LED T8 3CCT Type A / B / SE - 9W/18W/22W/30W
Features
- Energy saving with low power consumption
- Perfect retrofit traditional lamps with no change on dimensions
- Smooth operation even at low temperatures
- No mercury and hazardous substances

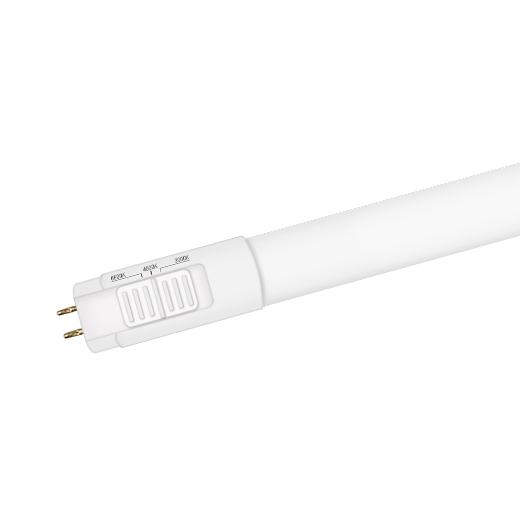

- Selectable CCT via dip-switch
- Inventory cost saving
- Type A/B is for direct retrofit of magnetic ballast circuit
- Full glass body
- Voltage: 220-240Vac, 50/60Hz, Power Factor: 0.9
- High efficacy up to 120lm/W
- Good color rendition, Ra ≥80
Diagrams
Standards
Applications
Home
Office
Shopping mall
Hotel
Supermarket
Restaurant
Parking
School
Warehouse
Factory
Hospital
Gallery
Museum
Airport
Station
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | NDLS |
| Mains or Non-mains [MLS/NMLS] | MLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 9W / 18W / 22W / 30W |
| On-mode Power [W] | 9W / 18W / 22W / 30W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 220-240Vac, 50/60Hz |
| Power Factor @230V | 0.85 / 0.9 / 0.9 / 09 |
| Input Current [mA] @230V | 46 / 87 / 106 / 145 |
| Model | |
| LED F9T8/8XX/G/600/3CCT | 9W |
| LED F18T8/8XX/G/1200/3CCT | 18W |
| LED F22T8/8XX/G/1500/3CCT | 22W |
| LED F30T8/8XX/G/1800/3CCT | 30W |
| Luminous Flux [lm] | |
| 9W | 900lm @3000K |
| 990lm @4000K | |
| 990lm @6500K | |
| 18W | 1900lm @3000K |
| 1980lm @4000K | |
| 1980lm @6500K | |
| 22W | 2320lm @3000K |
| 2420lm @4000K | |
| 2420lm @6500K | |
| 30W | 3300lm @3000K |
| 3600lm @4000K | |
| 3600lm @6500K | |
| Performance | |
| SDCM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.403@3000K / 0.38, 0.38@4000K / 0.312, 0.335@6500K |
| Efficacy [lm/W] | 100-120 |
| Color Rendering Index [Ra] | ≥80 |
| R9 colour rendering index value | 2 |
| Beam Angle [°] | 280 |
| Rated Life, Ta@25°C [hrs] | 40,000 |
| Survival Factor | 0.9 |
| Lumen Maintenance Factor | 0.96 |
| Number of Switching Cycles Before Failure | >15,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | 0.5 / 0.7 / 0.7 / 0.9 |
| Flicker Metric [Pst LM] | 1 |
| Stroboscopic Effect Metric [SVM] | 0.4 |

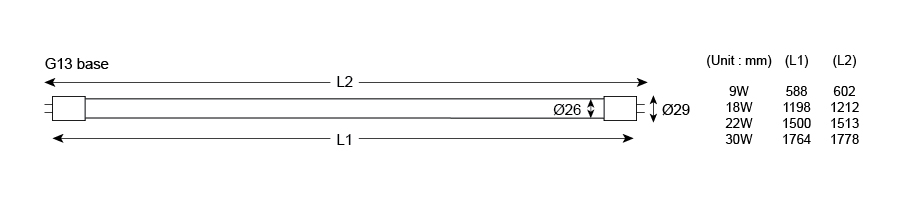

| Mechanical | |
| Diameter D [mm] | Φ29 |
| Length L1 [mm] | 588 / 1198 / 1500 / 1764 |
| Length L2 [mm] | 602 / 1212 / 1513 / 1778 |
| Base | G13 |
| Material | Glass |
| Standard Compliance | |
| CE-LVD | EN62776 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| CE-EMF | EN62493 |
| Environment | RoHS |
| Mercury Content [mg] | 0.0 |
| Energy Class | E |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | N |
| Operation Temperature | -20°C ~ 50°C |
| Storage Temperature | -10°C ~ 30°C |
| Energy Consumption in on-mode [kWh/1000h] | 9kWh / 18kWh / 22kWh / 30kWh |
