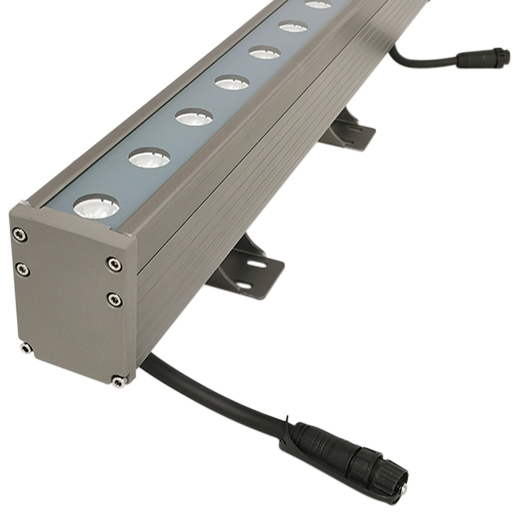

LED Linear Wallwasher WW1E-4E - 14W/27W/39W/51W
Features
- 14W / 27W / 39W / 51W LED Linear Wall Washer
- 11 types advance optical solutions are available
- Individual SPD in series connection with L-L 10kV and L-Peak 20kV protection except 300mm length model with L-L 2kV
- 1-10V dimming option available
- Integral driver
- Optional glare shield
- Guarantees functionality in dusty and humid environment
- Good color rendition, Ra ≥80

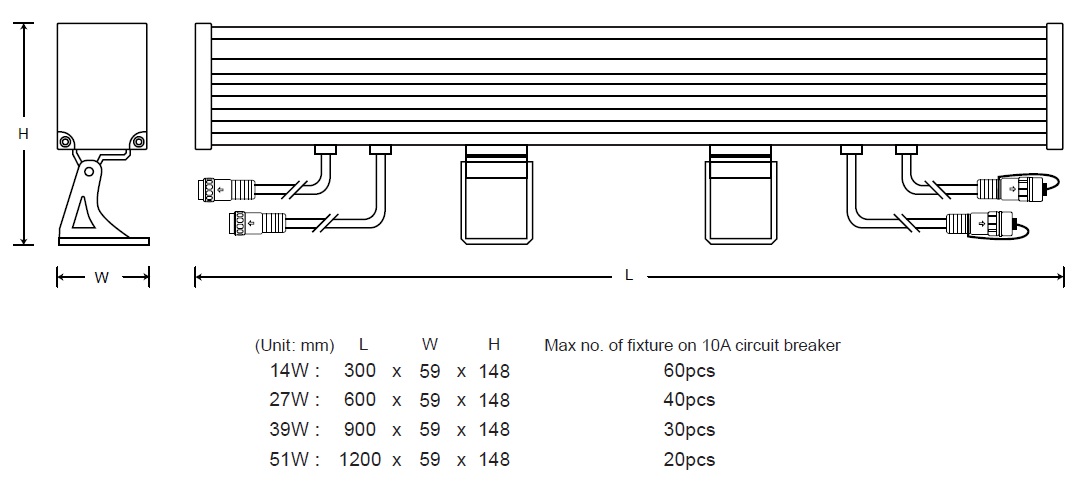

Diagrams
Standards
Applications
Facade
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | DLS |
| Mains or Non-mains [MLS/NMLS] | MLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 14W / 27W / 39W / 51W |
| On-mode Power [W] | 14W / 27W / 39W / 51W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 100-240V, 50/60Hz |
| Power Factor | 0.9 |
| Input Current [mA] @230V | 68 / 130 / 188 / 246 |
| Model | |
| WW1E-14W/8XX-0010G | 14W |
| WW2E-27W/8XX-0010G | 27W |
| WW3E-39W/8XX-0010G | 39W |
| WW4E-51W/8XX-0010G | 51W |
| Luminous Flux (Useful Luminous Flux) [lm] | |
| 14W | 1190lm (1150lm) @3000K |
| 1260lm (1220lm) @4000K | |
| 1330lm (1290lm) @6500K | |
| 27W | 2300lm (2230lm) @3000K |
| 2430lm (2360lm) @4000K | |
| 2570lm (2495lm) @6500K | |
| 39W | 3320lm (3220lm) @3000K |
| 3510lm (3405lm) @4000K | |
| 3710lm (3600lm) @6500K | |
| 51W | 4340lm (4210lm) @3000K |
| 4590lm (4450lm) @4000K | |
| 4850lm (4705lm) @6500K | |
| Performance | |
| SCDM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.403@3000K / 0.38, 0.38@4000K / 0.312, 0.335@6500K |
| Efficacy [lm/W] | 83-92 |
| Color Rendering Index [Ra] | ≥80 |
| R9 colour rendering index value | 2 |
| Beam Angle [°] | 10 / 15 / 25 / 30 / 40 / 60 / 10x30 / 10x45 / 10x65 / 10x70 / 20x65 |
| Rated Life, Ta@25°C [hrs] | 50,000 |
| Lamp Survival Factor | 0.9 |
| Lumen Maintenance | 0.96 |
| Number of Switching Cycles Before Failure | 25,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | 0.7(14W) / 0.9(27W, 39W, 51W) |
| Flicker Metric [Pst LM] | 1 |
| Stroboscopic Effect Metric [SVM] | 0.4 |
| Mechanical | |
| Length L [mm] | 300 / 600 / 900 / 1200 |
| Width W [mm] | 59 |
| Height H [mm] | 148 |
| Material | Housing: Extruded aluminum, anodized |
| End cap: Die cast aluminum, powder coated in grey | |
| Glass: Tempered glass | |
| Standard Compliance | |
| CE-LVD | EN60598-1, EN60598-2-2 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Mercury Content [mg] | 0.0 |
| Energy Class | F |
| Electrical Class | I |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | Optional |
| Operation Temperature | -10°C ~ 35°C |
| Storage Temperature | -30°C ~ 40°C |
| Energy Consumption in on-mode [kWh/1000h] | 14kWh / 27kWh / 39kWh / 51kWh |
