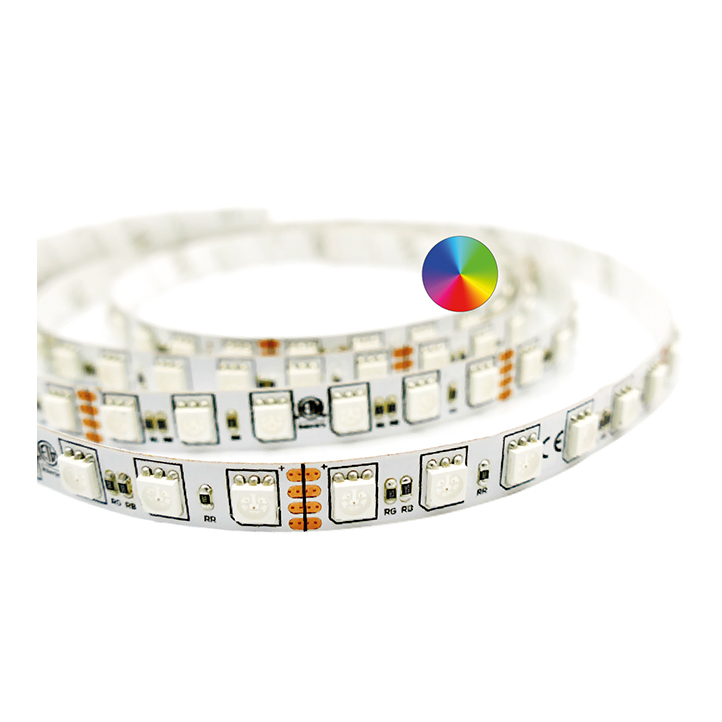

LED Striplight RGB - 7.2W/m, 14.4W/m

Datasheet Catalogue

Features

  • Extremely energy saving with low power consumption
  • High brightness, multi-functional for linear decoration
  • Long average life 30000 hours
  • Vivid and multiple color effects
  • Low thermal output with no IR and harmful UV
  • No mercury and hazardous substances

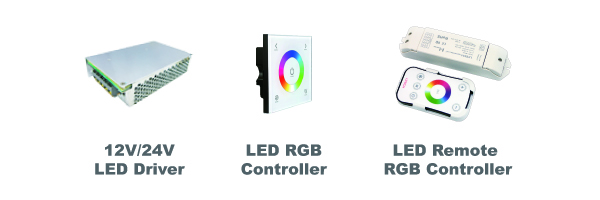

  • LED Driver Controllers: 12V/24V LED Driver, LED RGB Controller, LED Remote RGB Controller

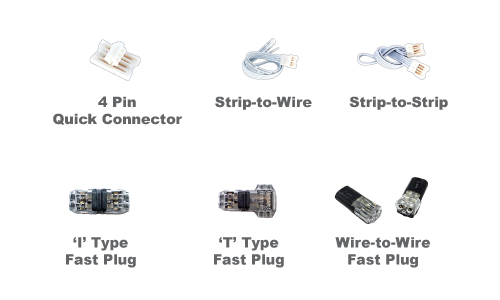

  • Connectors: 4 Pin Quick Connector, Strip-to-Wire, Strip-to-Strip, 'I' Type Fast Plug, 'T' Type Fast Plug, Wire-to-Wire Fast Plug

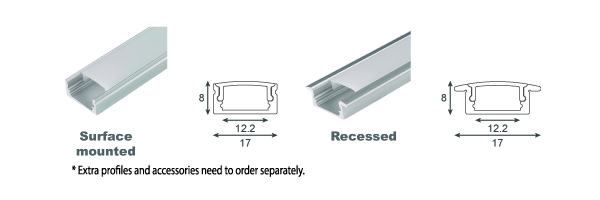

  • Profiles: Surface mounted, Recessed
  • Extra profiles and accessories need to order separately
  • Dimmable as option

Diagrams

LED Driver Controllers Profiles Connectors Dimensions

Standards

Applications

Home

Shopping mall

Hotel

Supermarket

Restaurant

Gallery

Museum

Technical Data+
Electrical
Rated Wattage [W] 7.2W/m, 14.4W/m
Rated Voltage [V/Hz] 12V DC, 50/60Hz / 12/24V DC, 50/60Hz
Power Factor 1
Input Current (mA) @12V 600 / 1200
Input Current (mA) @24V 600
LED SMD 5050
Model
LED 5050 7.2W 10-30 RGB 7.2W/m, 12VDC
LED 5050 14.4W 10-60 RGB 14.4W/m, 12V/24VDC
Luminous Flux [lm]
7.2W/m 300lm/m
14.4W/m 600lm/m
Cutting Unit [mm]
7.2W/m 100mm/3LEDs (12V)
14.4W/m 50mm/3LEDs (12V), 100mm/6LEDs (24V)
Performance
SDCM <6
Efficacy [lm/W] 42
Color Rendering Index [Ra] -
Beam Angle [°] 120
Rated Life, Ta@25°C [hrs] 30,000
Lamp Survival Factor 0.9
Lumen Maintenance 0.96
Number of Switching Cycles Before Failure >15,000
Starting Time [S] <0.5
Warm Up Time [S] <2
Premature Failure At 1000hrs <5%
Mechanical
Length L [mm] 5000 per reel
Width W [mm] x Height H [mm] IP20 : 10 x 1.8
IP54-S : 10 x 2.5
IP65 : 12 x 4
IP67-R : 12 x 4.8
IP67-RW : 12 x 4.8
IP68 : 12 x 4.5
Once the strip light is cut, IP68 is no longer guaranteed
Surface mounted profile : 17 x 8
Recessed profile : 17 x 8
Number of LEDs 30 pcs/m (7.2W/m)
60 pcs/m (14.4W/m)
Material Chips: Epistar
Standard Compliance
CE-LVD EN62560
CE-EMC EN55015, EN61547, EN61000-3-2, EN61000-3-3
CE-EMF EN62493
Mercury Content [mg] 0.0
Other
Dimmable [Yes/Only with specific dimmers/No] Yes
Operation Temperature -10°C ~ 40°C
Storage Temperature -20°C ~ 60°C
