LED T8 Global CC - 13W/19W/31W/41W
Features
- Two pins connection allows flexible wiring for light up and bi-directional tube installation
- Auto-correcting polarity protection
- 12 types of wiring combination in one tube
- External constant current driver (UL Type C)
- High efficacy up to 140lm/W
- Wattage and lumen can be adjusted by a driver with lower output current
- Suitable for LED emergency lighting
- Remote driver allows for superior heat dissipation performance and longer average lifetime
- Dimming and control system integration is possible based on selected driver model
- No mercury and hazardous substances
- Energy saving with low power consumption
- Smooth operation even at low temperatures
- Full glass body
- Good color rendition, Ra ≥80

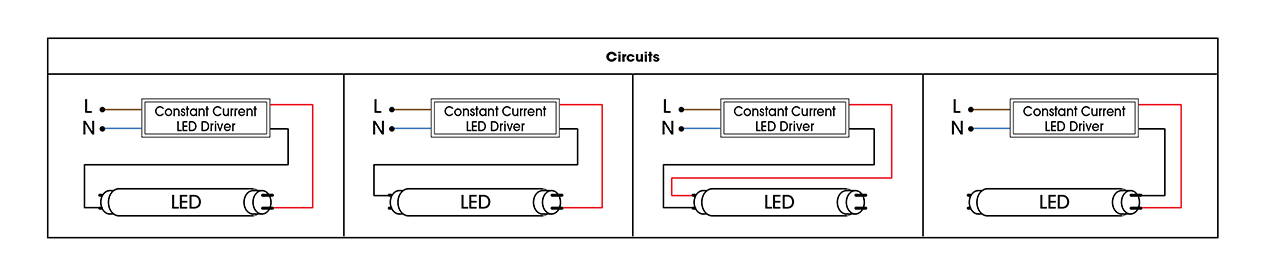

Diagrams
Standards
Applications
Home
Office
Shopping mall
Hotel
Supermarket
Restaurant
Parking
School
Warehouse
Factory
Hospital
Gallery
Museum
Airport
Station
| Type of Light Source | |
| Lighting Technology Used | LED |
| Non-directional or Directional [NDLS/DLS] | NDLS |
| Mains or Non-mains [MLS/NMLS] | NMLS |
| Connected Light Source | No |
| Color tunable light source | No |
| Envelop [No/Second/Non-Clear] | No |
| High Luminance Light Source | No |
| Anti-glare Shield | No |
| Electrical | |
| Rated Wattage [W] | 13W / 19W / 31W / 41W / 41W |
| On-mode Power [W] | 13W / 19W / 31W / 41W / 41W |
| Standby Power [W] | N/A |
| Networked Standby Power [W] | N/A |
| Rated Voltage [V/Hz] | 17-22V / 25-30V / 28-33V / 36-41V / 27-31V |
| Input Current [mA] @230V | 700 / 700 / 1050 / 1050 / 1400 |
| Model | |
| LED F13T8/8XX/G/CC/600 | 13W |
| LED F19T8/8XX/G/CC/900 | 19W |
| LED F31T8/8XX/G/CC/1200 | 31W |
| LED F41T8/8XX/G/CC/1500 | 41W |
| LED F41T8/8XX/G/CC/1500/2 | 41W |
| Luminous Flux [lm] | |
| 13W | 1755lm @3000K |
| 1820lm @4000K | |
| 1820lm @5000K | |
| 1820lm @6500K | |
| 19W | 2565lm @3000K |
| 2660lm @4000K | |
| 2660lm @5000K | |
| 2660lm @6500K | |
| 31W | 4185lm @3000K |
| 4340lm @4000K | |
| 4340lm @5000K | |
| 4340lm @6500K | |
| 41W | 5535lm @3000K |
| 5740lm @4000K | |
| 5740lm @5000K | |
| 5740lm @6500K | |
| Performance | |
| SDCM | <6 |
| Chromaticity coordinates [x, y] | 0.44, 0.403@3000K / 0.38, 0.38@4000K / 0.345, 0.356 @5000K / 0.312, 0.335@6500K |
| Efficacy [lm/W] | 135-140 |
| Color Rendering Index [Ra] | ≥80 |
| R9 colour rendering index value | 2 |
| Beam Angle [°] | 280 |
| Rated Life, Ta@25°C [hrs] | 50,000 |
| Survival Factor | 0.9 |
| Lumen Maintenance Factor | 0.96 |
| Number of Switching Cycles Before Failure | >15,000 |
| Starting Time [S] | <0.5 |
| Warm Up Time [S] | <2 |
| Premature Failure At 1000hrs | <5% |
| Displacement Factor [cosØ] | N/A |
| Flicker Metric [Pst LM] | N/A |
| Stroboscopic Effect Metric [SVM] | N/A |

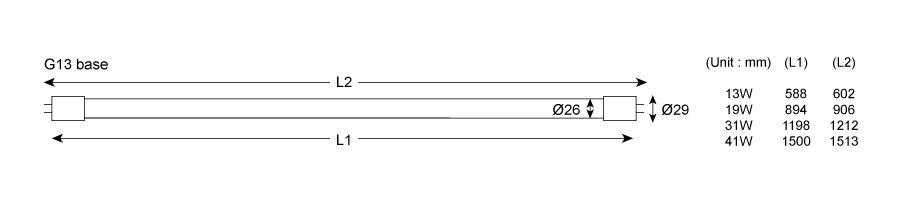

| Mechanical | |
| Diameter D [mm] | Φ29 |
| Length L [mm] | 600 / 900 / 1200 / 1500 |
| Base | G13 |
| Material | Glass |
| Standard Compliance | |
| CE-LVD | EN60598-2-1, EN60598-1, EN62776, EN61347-2-13, EN61347-1, EN62493, EN62471, EN62031 |
| CE-EMC | EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| Environment | RoHS |
| Mercury Content [mg] | 0.0 |
| Energy Class | E |
| Other | |
| Dimmable [Yes/Only with specific dimmers/No] | Y |
| Operation Temperature | -20°C ~ 50°C |
| Storage Temperature | -10°C ~ 30°C |
| Energy Consumption in on-mode [kWh/1000h] | 13kWh / 19kWh / 31kWh / 41kWh |
