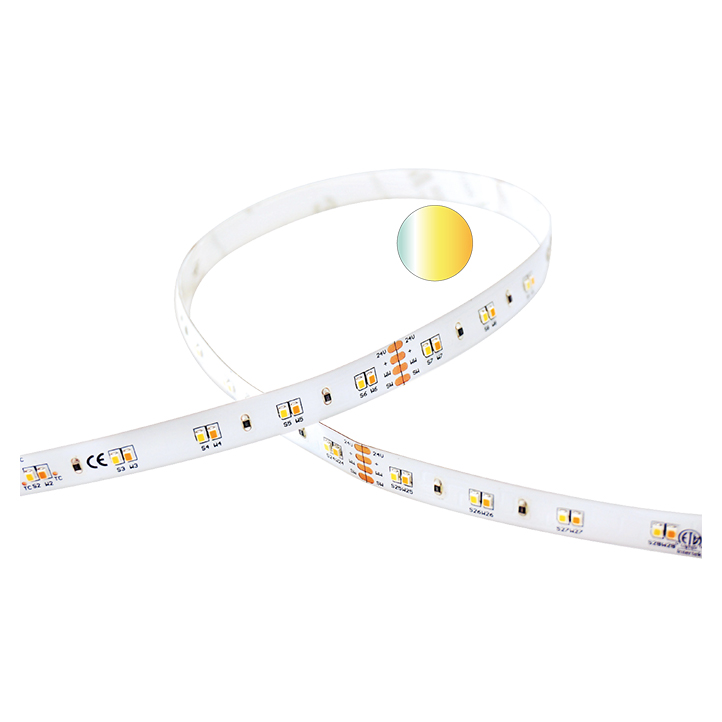

LED Striplight Tunable White - 9.16W/m

Datasheet Catalogue

Features

  • Extremely energy saving with low power consumption
  • High brightness, multi-functional for linear decoration
  • Long average life 30000 hours
  • Tunable White from 2500K to 6500K
  • Low thermal output with no IR and harmful UV
  • No mercury and hazardous substances

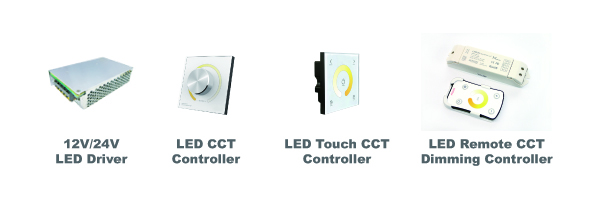

  • LED Driver Controllers: 24V LED Driver, LED CCT Controller, LED Touch CCT Controller, LED Remote CCT Dimming Controller

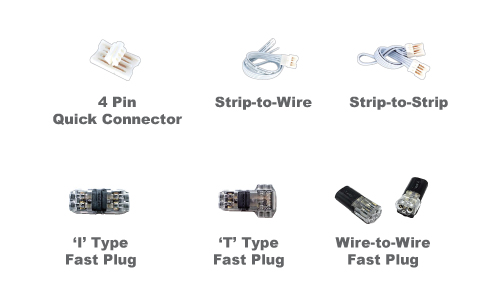

  • Connectors: 4 Pin Quick Connector, Strip-to-Wire, Strip-to-Strip, 'I' Type Fast Plug, 'T' Type Fast Plug, Wire-to-Wire Fast Plug

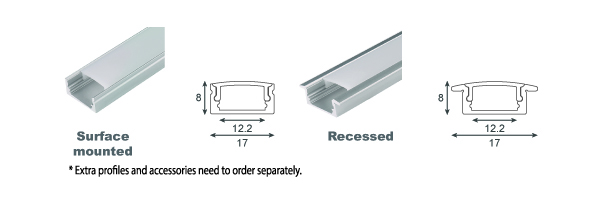

  • Profiles: Surface mounted, Recessed
  • Extra profiles and accessories need to order separately
  • Dimmable as option
  • High color rendition, Ra ≥90

Diagrams

LED Driver Controllers Connectors Profiles Dimensions

Standards

Applications

Home

Shopping mall

Hotel

Supermarket

Restaurant

Gallery

Museum

Technical Data+
Type of Light Source
Lighting Technology Used LED
Non-directional or Directional [NDLS/DLS] NDLS
Mains or Non-mains [MLS/NMLS] NMLS
Connected Light Source No
Color tunable light source No
Envelop [No/Second/Non-Clear] No
High Luminance Light Source No
Anti-glare Shield No
Electrical
Rated Wattage [W] 9.16W/m
On-mode Power [W] 4.58W/m
Standby Power [W] N/A
Networked Standby Power [W] N/A
Rated Voltage [V/Hz] 24V DC, 50/60Hz
Power Factor 1
Input Current (mA) @24V 382
LED SMD 2016
Model
LED 2016 9.16W 10-120 TW 9.16W/m, 24VDC
Luminous Flux (Useful Luminous Flux) [lm]
9.16W/m (4.58W/m) 720lm/m (390lm/m) @2500-6000K
Cutting Unit [mm]
9.16W/m 100mm/12LEDs (24V)
Performance
SDCM <6
Chromaticity coordinates [x, y] 0.44,0.403@3000K / 0.38,0.38@4000K / 0.312,0.335@6500K
Efficacy [lm/W] 85
Color Rendering Index [Ra] ≥90
R9 colour rendering index value 2
Beam Angle [°] 120
Rated Life, Ta@25°C [hrs] 30,000
Lamp Survival Factor 0.9
Lumen Maintenance 0.96
Number of Switching Cycles Before Failure >15,000
Starting Time [S] <0.5
Warm Up Time [S] <2
Premature Failure At 1000hrs <5%
Displacement Factor [cosØ] N/A
Flicker Metric [Pst LM] N/A
Stroboscopic Effect Metric [SVM] N/A
Mechanical
Length L [mm] 5000 per reel

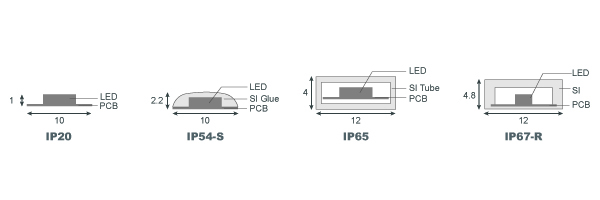

Width W [mm] x Height H [mm] IP20 : 10 x 1
IP65 : 12 x 4
IP67-R : 12 x 4.8
Surface mounted profile : 17 x 8
Recessed profile : 17 x 8
Number of LEDs 120 pcs/m
Material Chips: Epistar
Standard Compliance
CE-LVD EN62560
CE-EMC EN55015, EN61547, EN61000-3-2, EN61000-3-3
CE-EMF EN62493
Environment RoHS
Mercury Content [mg] 0.0
Energy Class G
Other
Dimmable [Yes/Only with specific dimmers/No] Y
Operation Temperature -10°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Energy Consumption in on-mode [kWh/1000h] 10kWh
